Heat Transfer Film

HOME  >  PRODUCT  > Clothes / Shoes, Industrial  >  Heat Transfer Film

Cuttable Media

Product Name Product Code Handling Size Test Report
REFLET PLUS RE2031 250mm x 100m & 500mm x 100m Satra Technology centre, UK / EN ISO 20471:2013
INTERTEK Test report is available upon request

* Obtain pass grade of ISO 6330 : 2012 : 40°C and 25 Cycle

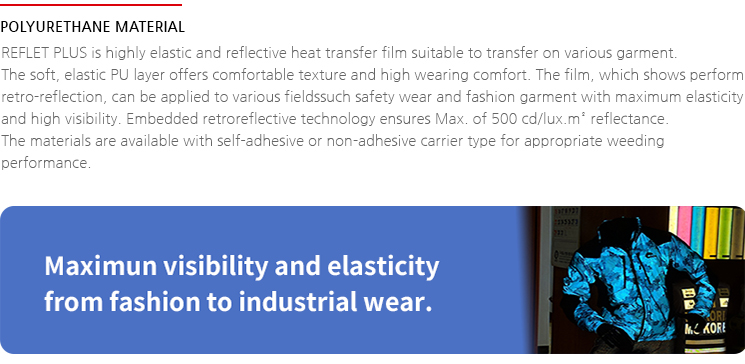

POLYURETHANE MATERIAL– REFLET PLUS [RE2031]
Washing Note Temperature : 60°C
Washing cycle : 35 times
Normal dry Cleaning : 10 times
Storage Cool, dry place without direct sunlight

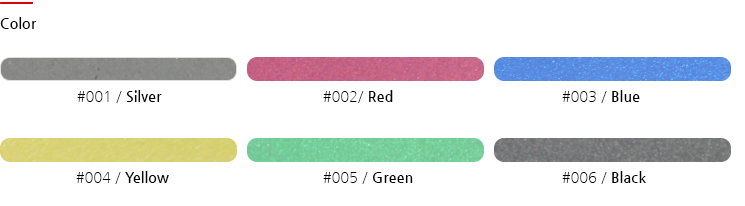

Color & Reflectivity
Silver : 550 cd/lux.m
Red : 215 cd/lux.m²
Blue : 220 cd/lux.m²
Yellow : 240 cd/lux.m²
Green : 240 cd/lux.m²
Black : 130 cd/lux.m²²
Angle (12') Entrance Angle (5°) Entrance Angle (30°)
Standard (x, y) (330, 330) (180, 180)
Result (x, y) (553, 536) (337, 282)

* N:B. Test data below has been tested & verified by SATRA Technology centre ltd., UK / EN ISO 20471: 2013
